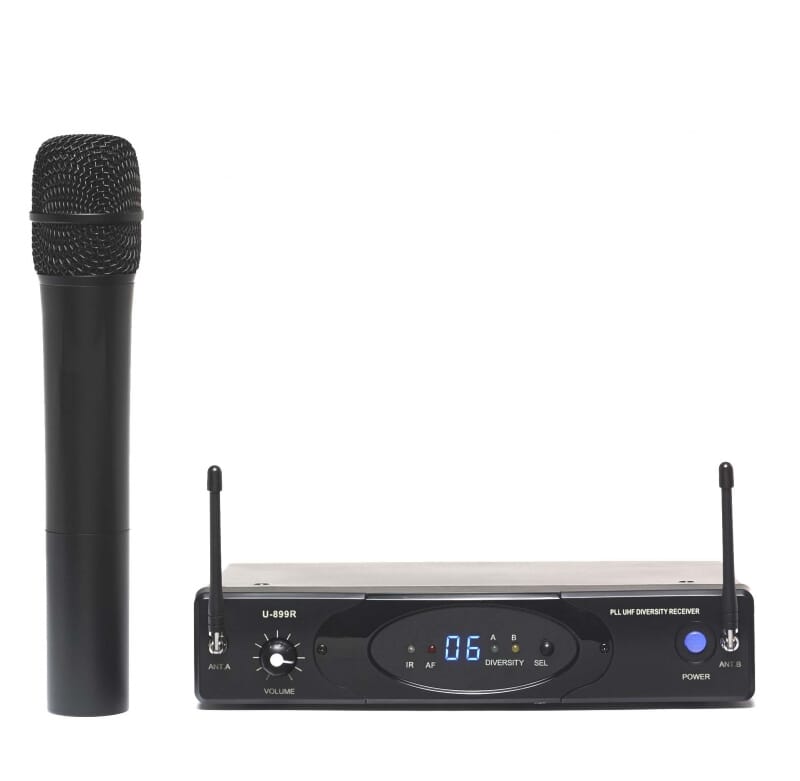

Trådløst mikrofonsett med trådløs håndmikrofon med godkjente frekvenser for det norske markedet.

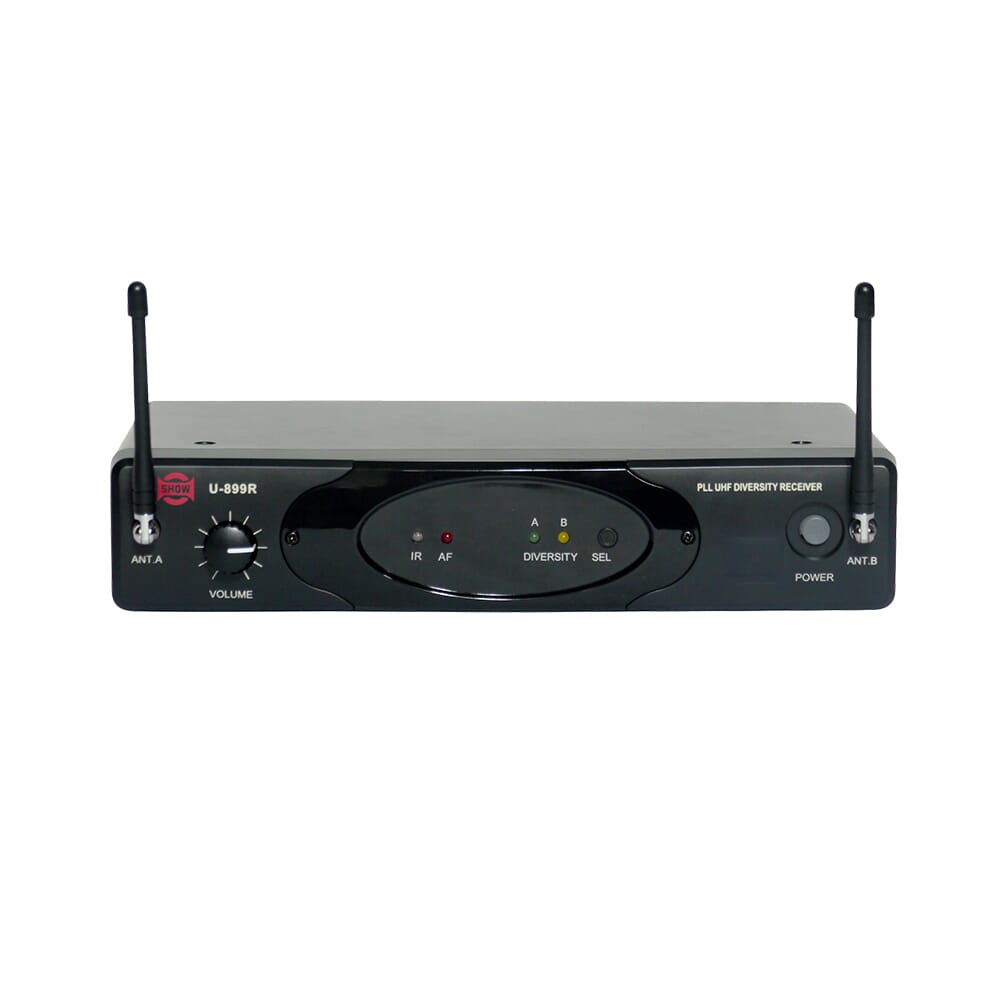

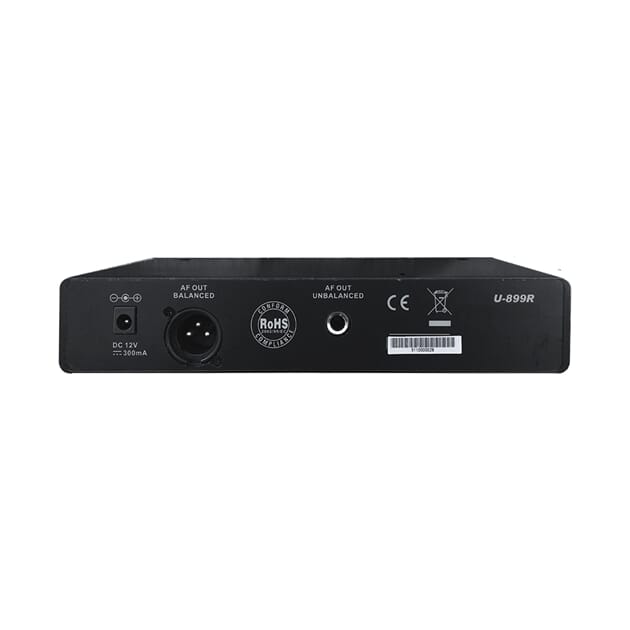

The U-899R is a newly developed model, adopting the double IF design.
This new model has a long distance application without signal interference.
The U-899H microphone offers 80 channels in the frequency range 823-832 MHz.
It is equipped with an infrared transmitter and receiver that allow the synchronisation of the channels.
Simple parameterisation to switch on an unused channel via a push button
SPECIFICATIONS U-899R
Channel
Individual channel, up to 80 preset frequencies
Reception method
Diversity
Type of reception
PLL UHF SYNTHESIZED
Carrier frequency
638 at 658 MHz
Frequency stability
± 0,005 %
Type of transmission
FM (F3E)
Audio distortion
< 1 %
Dynamic range
> 100 dB
Audio output
AF 550 Mv+ 20000 Hz
Signal-to-noise ratio
> 90 dB
RF sensitivity
-100 dbm/30 db
Frequency Response
50 – 50000 Hz (± 3db)
Power supply
DC 15V / 300 mA
Dimensions (W x D x H)
217 x 101,5 x 44 mm
Weight
0,440 kg
SPECIFICATIONS U-899H
Type of microphone
Dynamic
Oscillation mode
PLL UHF SYNT.
Type of transmission
FM (F3E)
Carrier frequency
638 à 658 MHz
Frequency stability
± 0,005 %
Audio distortion
< 0,8 %
Tone frequency
32 000,768 Hz
Maximum modulation
± 35 000 Hz
RF output power
10 mW
Frequency Response
50 – 15000 Hz (± 3db)
Dynamic range
>100 dB
Battery
2 LR6 1,5 V AA (not delivered)
Consumption
< 150 mA
Microphone capsule
Dynamic Capsule
Dimensions (W x D x H)
277 mm
Weight
0,210 kg
