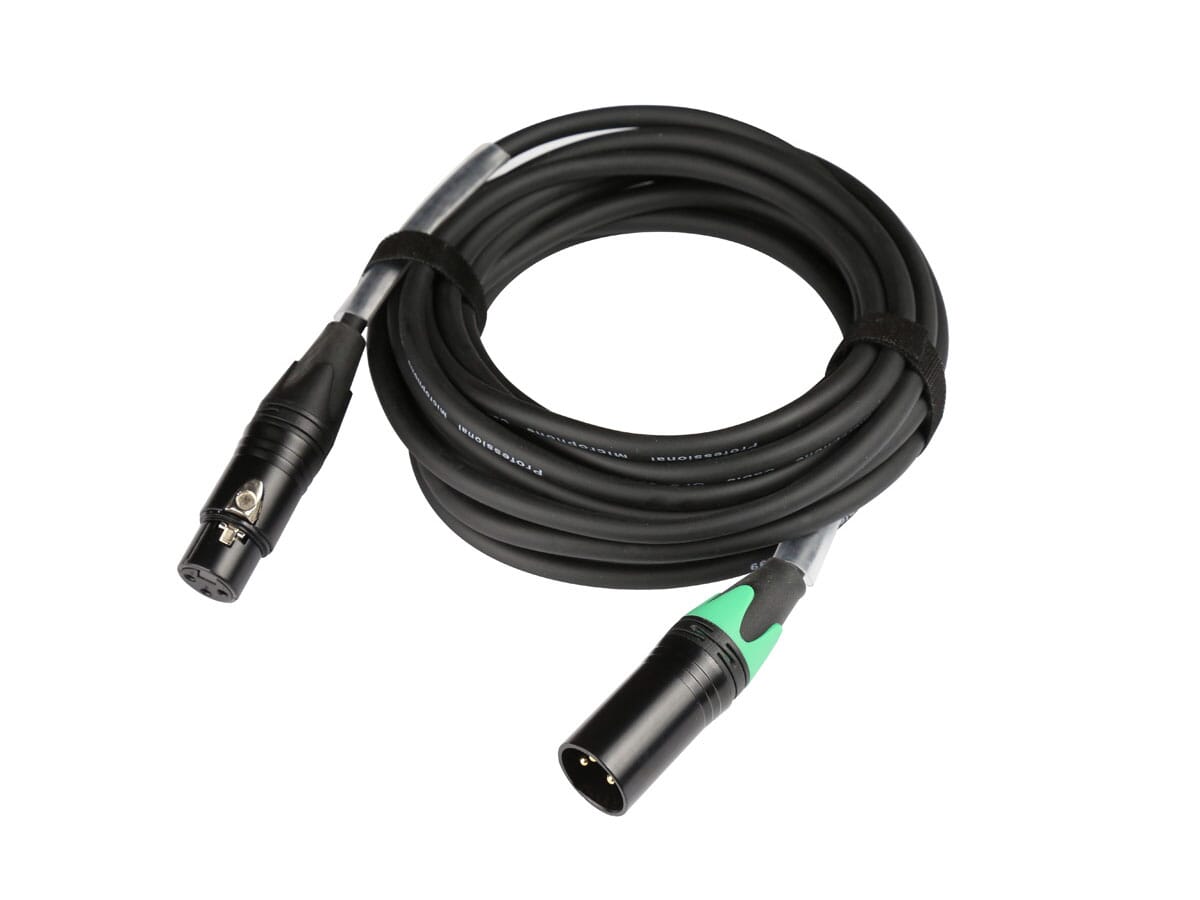

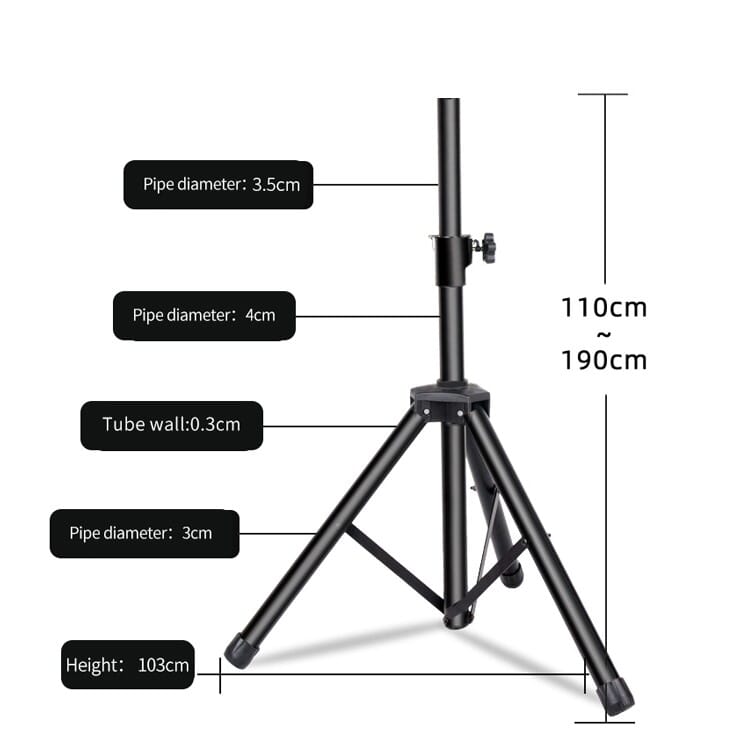

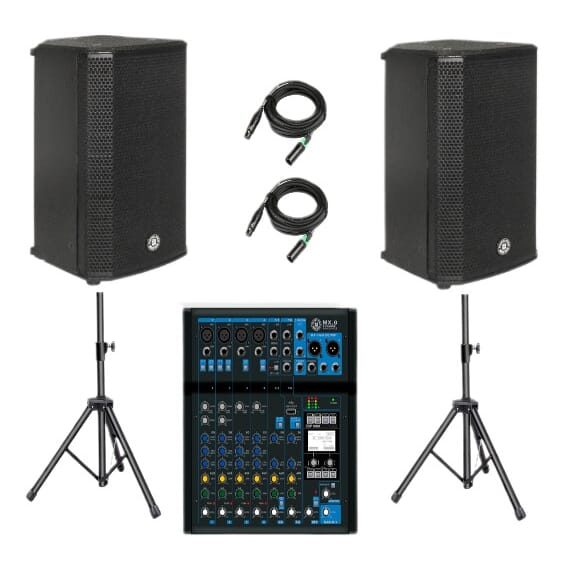

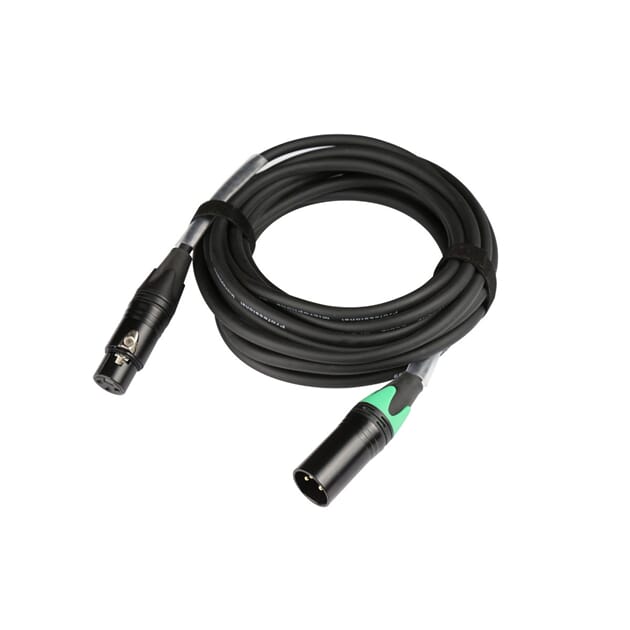

Musikktimen tilbyr en PA pakke bestående av 8" Topp-Pro høyttalere,Topp-pro mikser MX.8,stativ og kabler.
Spesifikasjoner:

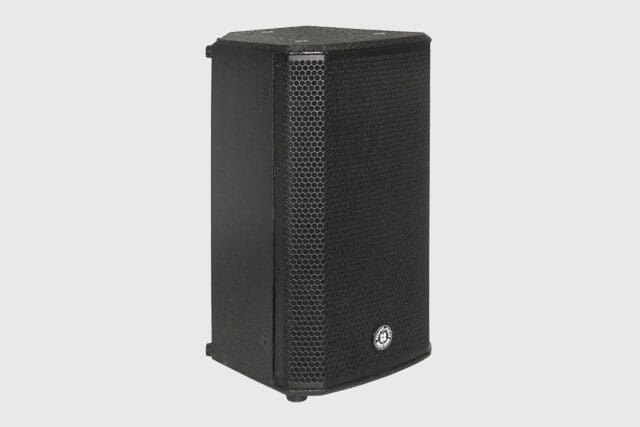

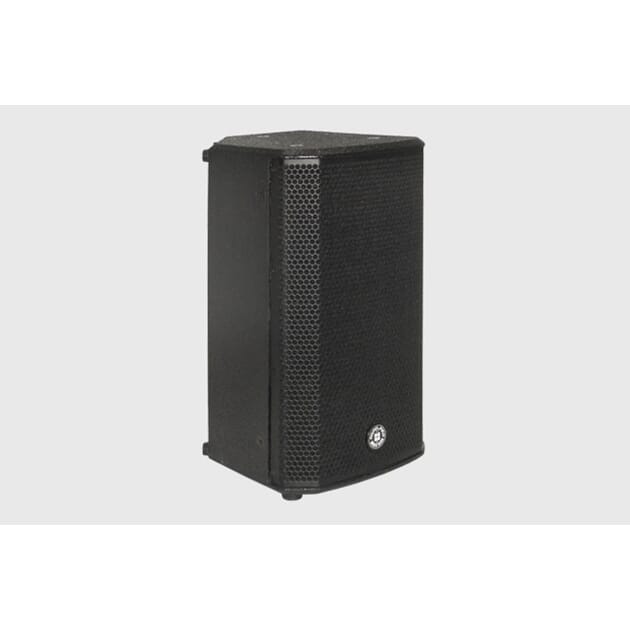

Aktive høyttalere - KS HD8A
System Configuration: Multi-purpose, 2-way Active Loudspeaker with DSP/OLED
LF Transducer 8" (203mm) Woofer, 2" Voice coil
HF Transducer 1" exit, ferrite magnet compression driver with 1.75" edgewound copper clad aluminium voice coil
Frequency Response (-6 dB) 60Hz-20KHz
Frequency Range (-10 dB) 55Hz-20KHz
Maximum Rated SPL 126dB Peak
Crossover Frequency At 1.8KHz with 24dB filter slope, Linkwitz-Riley Type
Amplifier Class D RMS: 500W (LF), 500W (HF)
Controls Power / 3 x Level / Rotary encoder
Indicators Monochrome OLED Display 1.65" x 1.1" (42.04mm x 27.22mm), 2 x Power LED (front and rear), 3 x Input Signal LED, Input 1 MIC selected LED, Input 2 HI-Z selected LED, Limiter active LED
Connectors 2 x locking XLR/F 1/4" combo (Mic/Line Input and Hi-Z/Line Input), 1 x 3.5mm TRS (Stereo Input), 1 x XLR/M (Mix Output), 1 x locking IEC power connector
AC Power Input 110-120V~50/60Hz or 220-240V~50/60Hz Switchable
Enclosure Plywood cabinet,resistant black paint, rubber feet, metal handle, metal grille with black foam
Attachment Points One metal standard pole-mount, 10 x M10 threaded inserts plus integrated Pull-Back
Dimensions (HxWxD) 460 x 273 x 302 mm / 18.11" x 10.75" x 11.89"
Net Weight 12.93 kg / 28.51 lbs

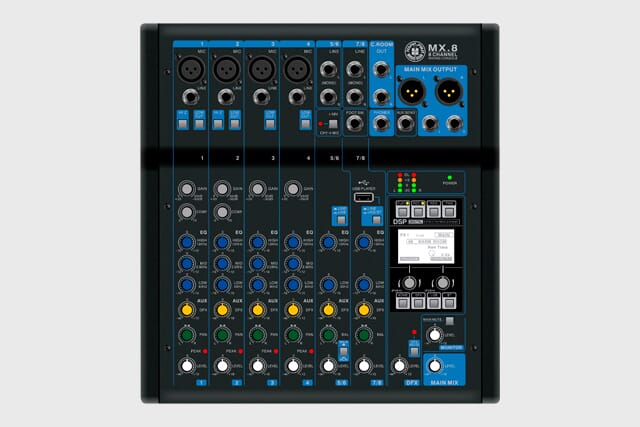

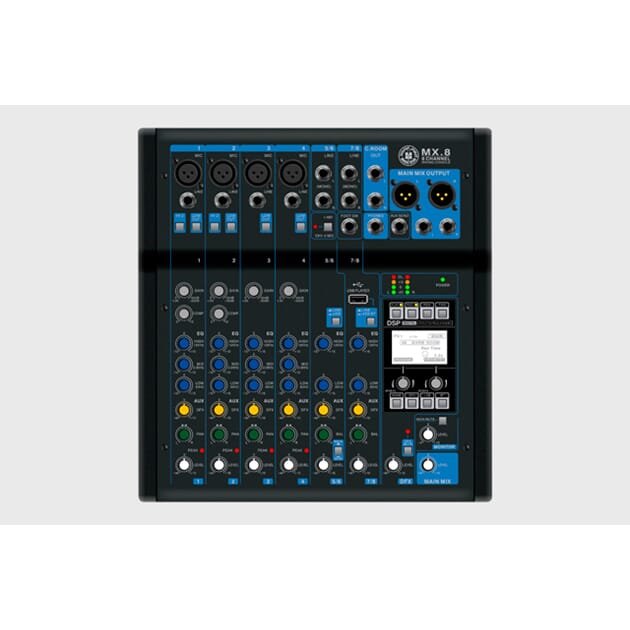

Mixer - MX.8
Mixing capability: On-board processors: 24 programs, PARAMETER control: 2, FOOT SW: 1
I/O Phanton Power +48V / USB Audio Class 2.0 compliant, Sampling Frequency: Max 192 kHz, Bit Depth: 24-bit
Input Channels Mono [MIC/LINE]: 4, Stereo [LINE]: 4
Output Channels STEREO OUT: 2, MONITOR OUT: 1, PHONES: 1, AUX SEND: 4
Bus Stereo: 1, AUX (FX): 1
Input Channel Function HPF: 120 Hz, 12 dB/oct (Mono/Stereo: MIC only) / COMP: 1-knob compressor (Gain/Threshold/Ratio) Threshold: +22 dBu to -8 dBu, Ratio: 1:1 to 4:1, Output level: 0 dB to 7 dB Attack time: approx. 25 msec, Release time: approx. 300 msec / EQ
HIGH: Gain: +15 dB/-15 dB, Frequency: 12 kHz shelving / EQ MID: Gain: +12 dB/-12 dB, Frequency: Mono 100 Hz – 8 kHz peaking, Stereo 2.5 kHz peaking / EQ LOW: Gain: +15 dB/-15 dB, Frequency: 80 Hz shelving / PEAK LED: LED turns on
when post EQ signal reaches 3 dB below clipping / Level Meter 2x
Total harmonic distortion 0.03 % @ +0dBu (20 Hz to 20kHz), GAIN knob: Min.
Frequency response +0.5 dB/-1.5 dB (20 Hz to 20 kHz) , refer to the nominal output level @ 1 kHz, GAIN knob: Min.
Hum & noise level: Equivalent input noise: -128 dBu (Mono Input Channel, Rs: 150O, GAIN knob: Max) / Residual output noise: - 100
Crosstalk -85 dB
Power requirements: DC15 V/0.8A, Cable length = 1.5m), AC 100 – 240 V, 50 / 60 Hz
Power consumption 12 W
Dimensions W: 282mm / H: 55.4mm / D: 296.1mm
